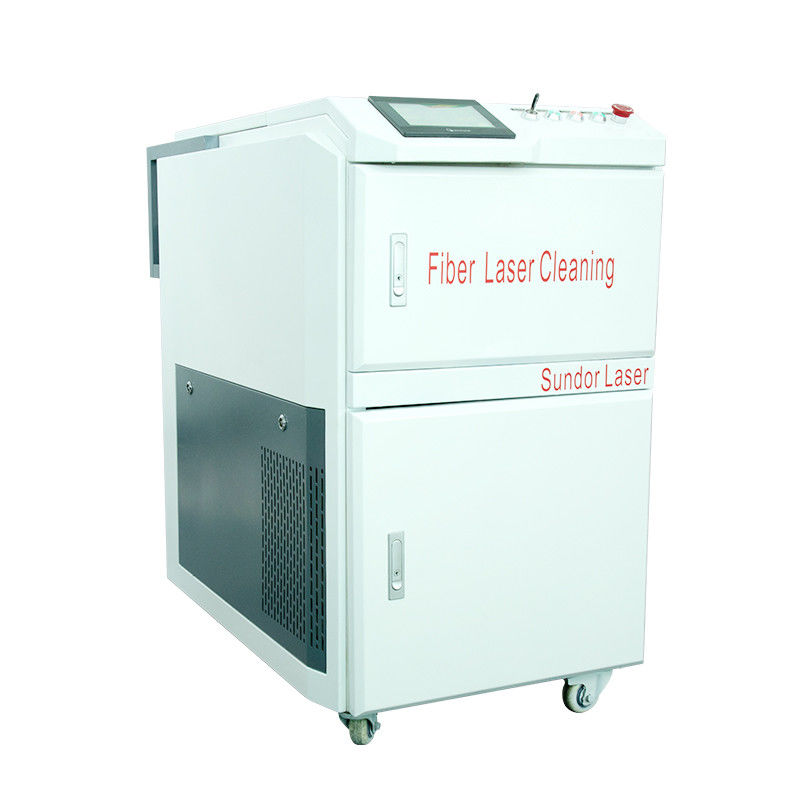

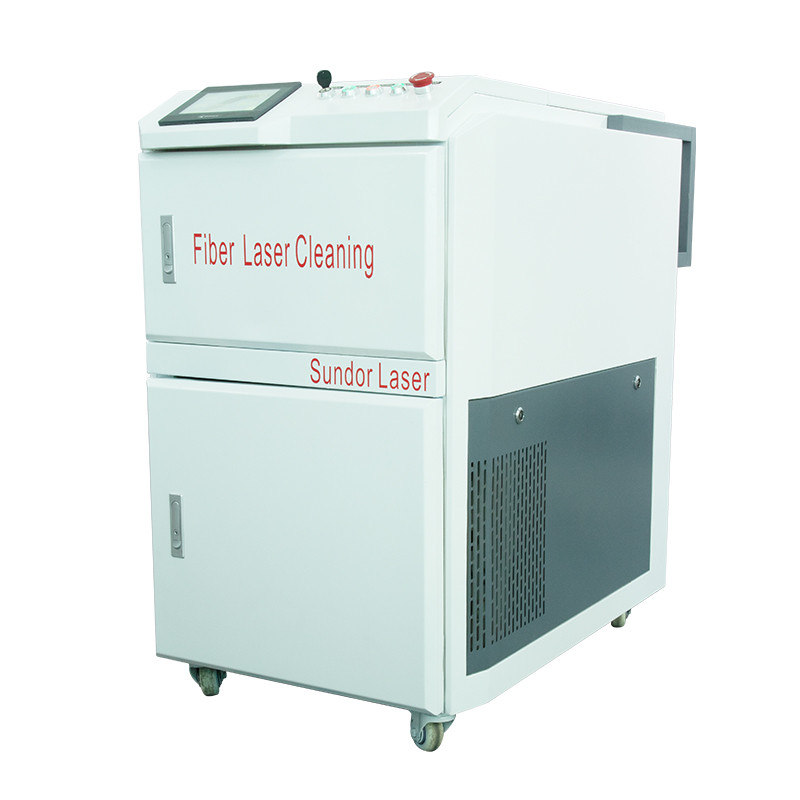

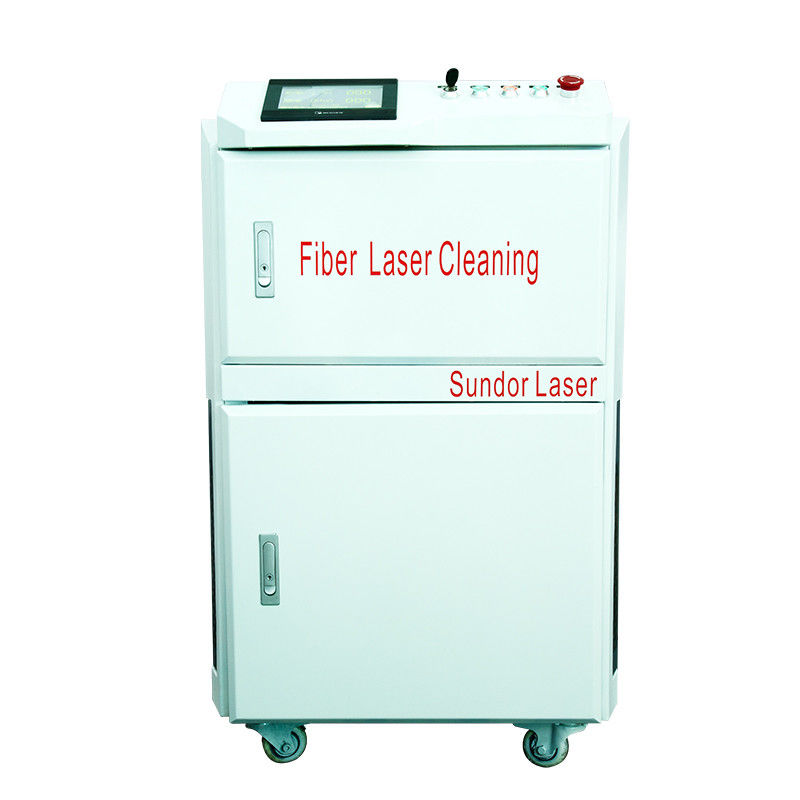

ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser

Basic Information
Place of Origin: Beijing, China
Brand Name: Sundor
Certification: BV, ce, ISO 9001:2000
Price: $15,000.00 - $54,500.00/sets
Packaging Details: Wood case
Supply Ability: 500 Set/Sets per Month
Detail Information
Condition: New Applicable Material: Acrylic, Aluminum, Metal
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product Warranty Of Core Components: 1 Years
Laser Type: Fiber Laser Dimension(L*W*H): 760*780*790mm
Laser Source Brand: RAYCUS Guiderail Brand: Sundor
Weight (KG): 198 KG Key Selling Points: Long Service Life
Applicable Industries: Advertising Company, Energy & Mining, Machinery Repair Shops, Manufacturing Plant Local Service Location: Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Pakistan, Mexico, Russia, Spain, South Korea
After-sales Service Provided: Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support, Video Technical Support Wavelength: 1064nm
Laser Power: 200W Laser Work Media: Yb Fiber
Pulse Frequency: 20-100KHZ Application: Rubber Molds
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service Port: Beijing/Tianjin/Jinan
High Light:

ISO9001 laser rust removal machine

,

laser rust removal machine 1000w

,

ISO 1000w rust cleaning laser


Product Description

1000w Coating & Rust removal of laser cleaning machine

Coating & Rust removal of laser cleaning machine

 ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 0

Product Parameter

ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 1



Model

SD-5C-050

SD-5C-070

SD-5C-100

SD-5C-200

SD-5C-350

Laser work media

YB Fiber

Laser power

50W

70W

100W

200W

350W

Laser wavelength

1064nm

Pulse frequency

20-100KHz

20-100KHz

20-200KHz

20-50KHz

20-50KHZ

Type of cooling

Air-Cooled

Air-Cooled

Air-Cooled

Water-Cooled

Water-Cooled

Cooling water



Deionized water

Deionized water

Water temperature

----------------

19

19

Dimensions

760mmX780X790mm

1100x950x700mm

Total weight

56kg

60kg

65kg

130kg (include water tank)

280kg (include water tank)

Total power

350W

500W

600W

1000W

1800W

Scan width

10-80mm

Choices

Handheld/Automatic

Working temperature

5-40

ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 2

Product Superiority

 ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 3



Advantage Comparison





Item

Laser Cleaning

Chemical Cleaning

Mechanical  Polish

Dry Ice (CO2) Cleaning

Ultrasonic cleaning

Cleaning Method

Laser and non-contact type

Chemical agent,Contact Cleaning

Mechanical/ abrasive paper, contact cleaning

Dry Ice (CO2), non-contact type

Cleaning agent,Contact type

Hurt for workpiece

No damage

With damage

With damage

No damage

No damage

Cleaning Efficiency

High

Low

Low

Medium

Medium

Consumable

Just with Electricity

Chemical cleaning agent

abrasive paper grinding wheel, oilstone

Dry Ice (CO2)

Special Cleaning Agent

Effective

Excellent with high cleanliness

Common,

 Non-uniform

Common, Non-uniform

Excellent , non-uniform

Excellent , small cleaning area

Accuracy

Precise Control, High Accuracy

Non-control,

Lowe Accuracy

Non-control,

Common Accuracy

Non-control,

Lowe Accuracy

Can not clear in special place

Safety / Pollution

No Pollution

Environment Pollution

Environment Pollution

No Pollution

No Pollution

Handling by workers

Simple Operation,

Handheld / Automation

Complex process,It is with high requirement for operator, must have preventive measure

With much labor cost and must have preventive measure

Simple Operation, Handheld / Automation

Simple Operation, but have to add consumables

Cost Comparison

High first Investment , No consumables ,

Low Maintenance Cost

Low first investment, Extremely High Consumables cost

High first Investment, high consumables cost & high labor cost

Medium first Investment, high consumables cost

Low first investment, Medium Consumables cost



Product Application

 ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 4

Shipbuilding industry, Auto Part, Rubber Mold, High level machine tools, Tyre mold, Rail, Environmental Protection industry, Metal & Non-metal parts etc

ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 5



Process Procedure

 ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 6

ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 7



Packaging & Shipping





ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 8



Company Information

 ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 9

ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 10ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 11





FAQ

 ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 12



ISO9001 Laser Rust Removal Machine 1000w Rust Cleaning Laser 13
