| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | YLH |
| Certification: | ce, ISO |
| Price: | $2,999.00/sets 1-9 sets |
| Packaging Details: | Wooden Box Comply with International Export Standard |
| Supply Ability: | 9999 Set/Sets per Month |
| Application: | Laser Marking | Working Accuracy: | 0.01mm |
|---|---|---|---|
| Graphic Format Supported: | AI, BMP, Dst, Dwg, DXF, DXP, LAS | Laser Type: | Fiber Laser, Fiber Laser Portable Machine |
| CNC Or Not: | Yes | Cooling Mode: | Air Cooling |
| Control Software: | EZCAD | Laser Source Brand: | RAYCUS |
| Marking Area: | 110mm*110mm | Warranty Of Core Components: | 2 Years |
| Core Components: | Pressure Vessel, Motor, Bearing, Gear, Gearbox, Engine, PLC, Laser, Laser Source | Laser Wavelength: | 1064nm |
| Marking Speed: | 10000mm/s | Marking Depth: | 0 ~0.5mm |
| Applicable Material: | Metal | Working Area: | 110*110 /150*150/175*175/ 200*200/300*300mm |
| High Light: | Desktop Fiber Laser Marking Machine,100w Fiber Laser Marking Machine,Inside Ring Laser Engraving Machine |
||

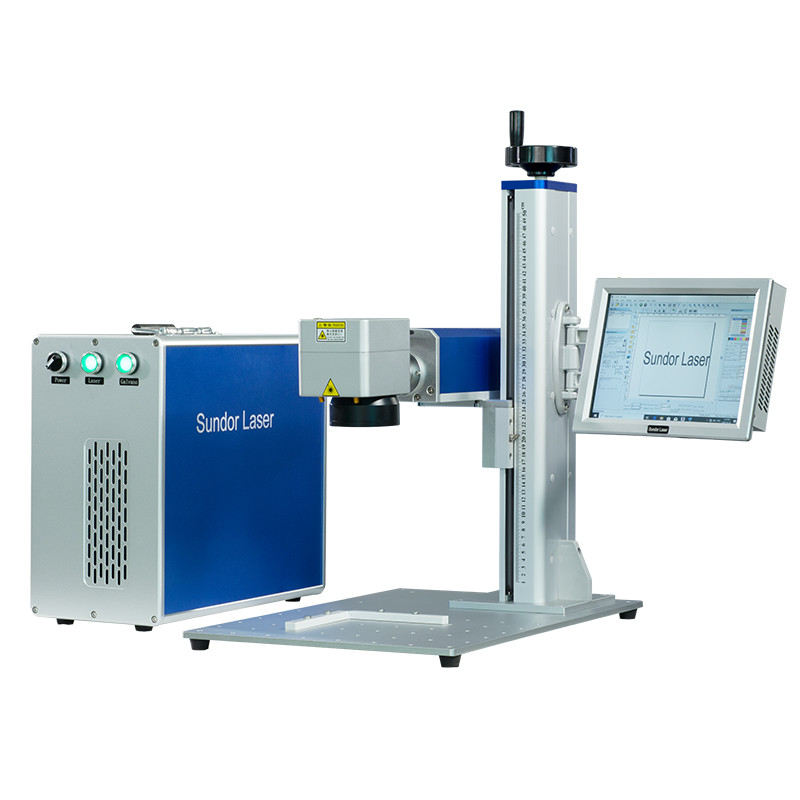

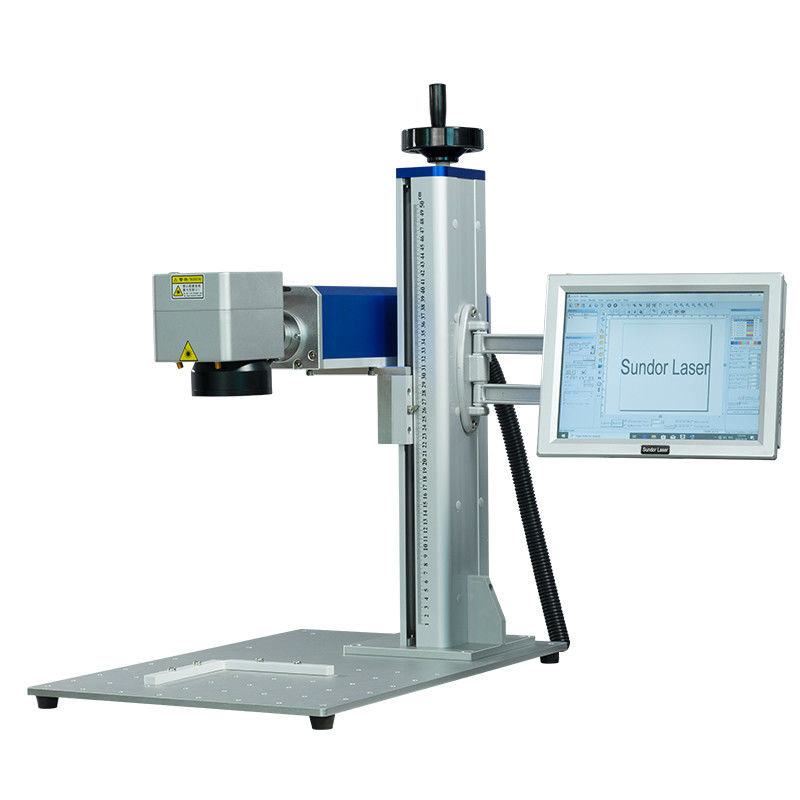

In Stock 20w 30w 50w 100w Desktop Portable Split Fiber Laser Marking Machine for Jewelry Inside Ring Laser Engraving
| Product Name | Fast Speed 50W Laser Marking Machine For Pipe And Hardware |
| Laser Type | Fiber |
| Modol | YLH-20E/30E/50E |
| Certificatons | CE, ISO,OTHER |
| Power | 20W 30W,50W |
| Brand | SUNDOR |
| Country of Origin | CHINA |
| Work Precision | ±0.01mm |
| Support Format | PLT, DST, AI, DXF, BMP, JPG, CAD,CDR, DWG,PCX |
| Software | EZCAD |
| Cooling Way | AIR COOLING |
| NC | YES |
| Condition | NEW |
| Warranty | 36 Months |
| Work Area (mm) | 110x110/175x175(Customized) |
| Min Line Width | 0.017mm |
| Min Character | 0.15mmx0.15mm |
| Wavelength | 1064nm |
| After-Service | Engineers available to service machinery overseas |
| Laser Repetition Frequency: | 20KHz-80KHz(adjustable) |
| Power Demand | AC220V/50HZ/2A |
| Optimum Working Temperature | 10-40 °C |
| Marking Depth | 0.01-1.0mm(subjejct to material) |
1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
6. YLH-20E fiber laser marking machine is portable. Power box and laser source can be separated. Easy transport and can be displayed separately according to user’s site space situation.
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q4: What’s consumables of laser marking machine?
A: It does not have consumable. It’s very economical and cost effective.
Q5: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What’s delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.
Q7: What payment terms can you accept?
A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q8: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
