| Place of Origin: | Beijing, China |
|---|---|
| Brand Name: | SUNDOR |
| Certification: | ce, ISO |
| Price: | $4800.00/sets 1-4 sets |
| Packaging Details: | 1. Packaging with factory Metal Nameplate; 2. Standard export wooden cases with sponge filled inside for packing protection 3. The Wooden case is fumigation free. Suitable both by sea and by air. |
| Supply Ability: | 999 Set/Sets per Month |
| Application: | Laser Marking, Metal And Non Metal | Working Accuracy: | 0.01mm |
|---|---|---|---|
| Graphic Format Supported: | AI, BMP, Dst, Dwg, DXF, LAS, PLT, JPG, CAD, CDR, DWG,PCX | Condition: | New |
| CNC Or Not: | Yes | Cooling Mode: | WATER Cooling |
| Control Software: | EZCAD | Laser Source Brand: | Maiman/IPG |
| Control System Brand: | EZCAD | Weight (KG): | 130 KG |
| Key Selling Points: | High Productivity/HIGH SPEED | Warranty: | 1 Year |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Marking Area: | 175mm*175mm/200mm*200mm |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC |
| Min Line Width: | 0.013mm | Min Character: | 0.15mmx0.15mm |
| Wavelength: | 355nm | Laser Repetition Frequency:: | 20KHz-200KHz(adjustable) |
| Power Demand: | AC220V/50HZ/2A | Marking Depth: | 0.01-1.0mm(subjejct To Material) |
| Keywords: | UV Laser Marking Machine | Power: | 3W/5W/10W |
| Usage: | Metal And Non Metal | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| High Light: | 5W uv laser engraving machine,High Precision uv laser engraving machine,200mm Glass laser engraving machine |
||

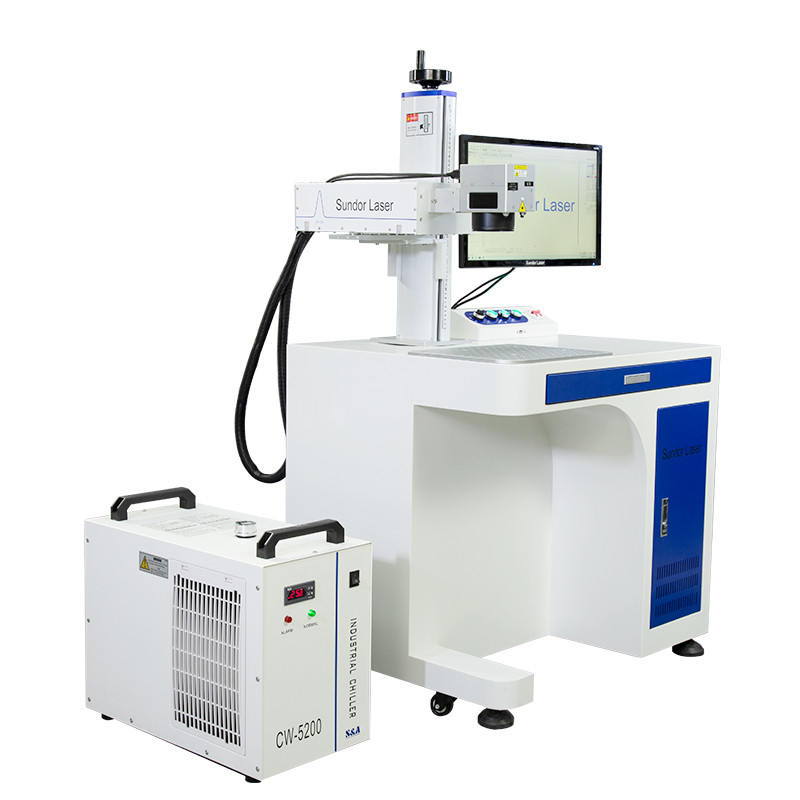

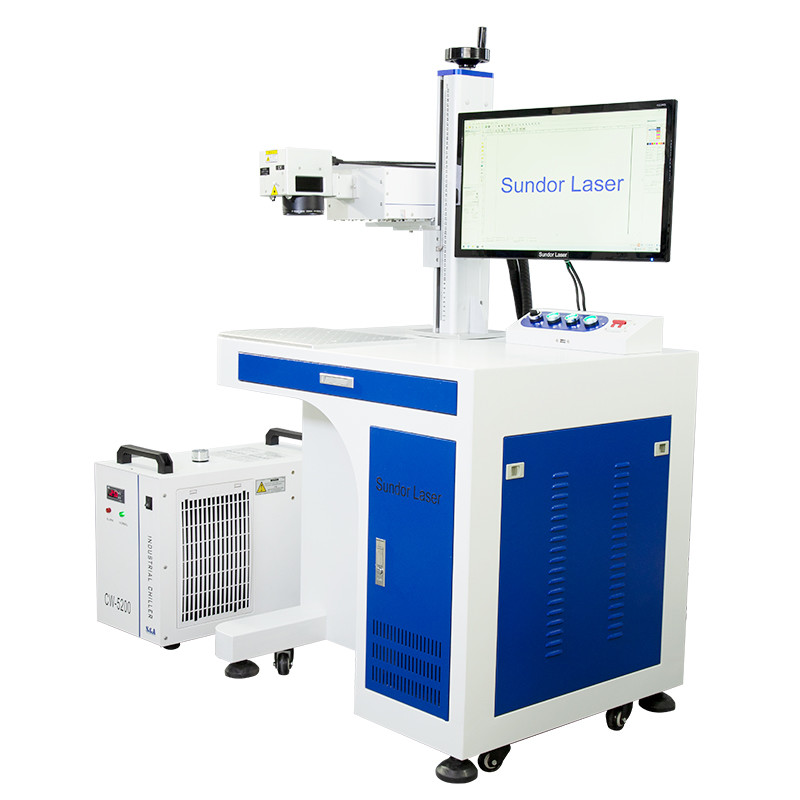

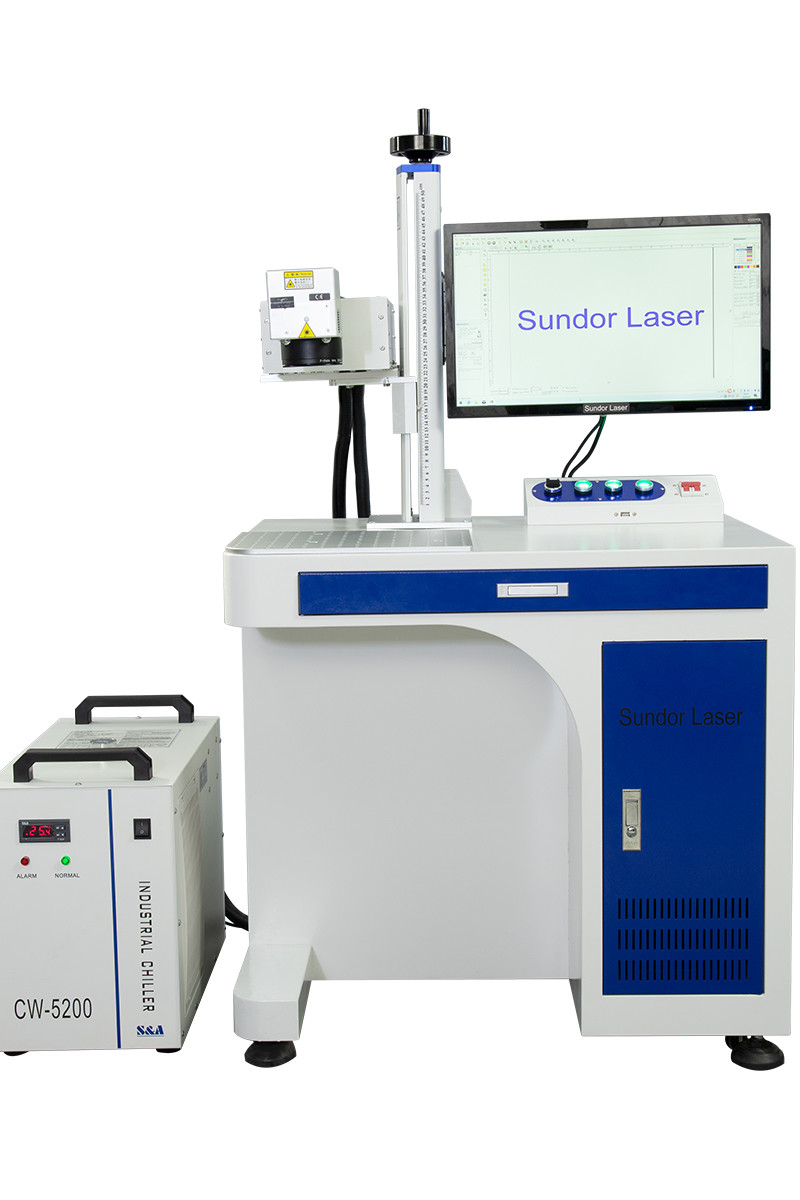

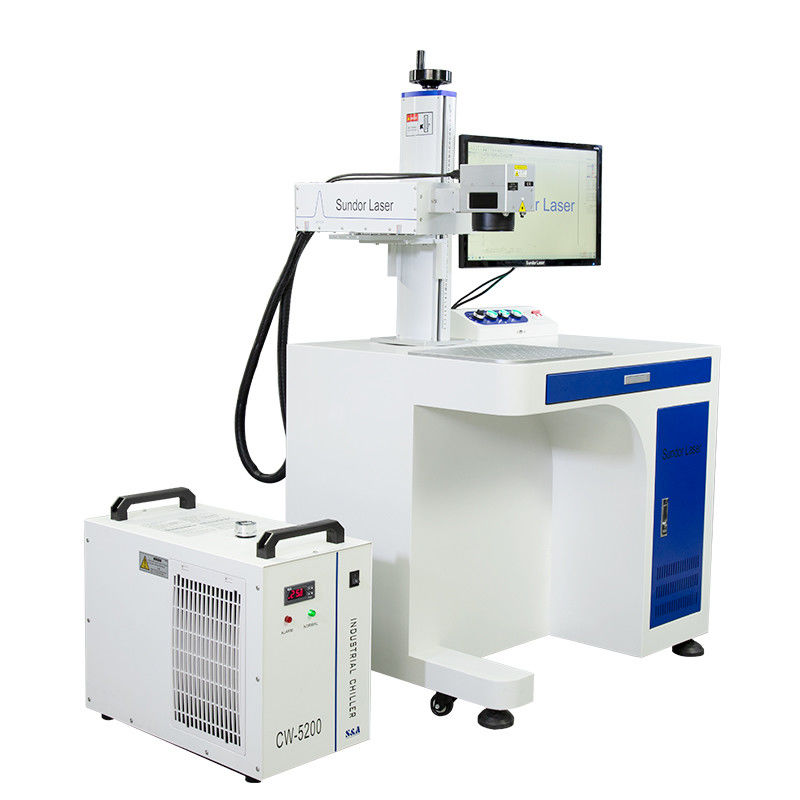

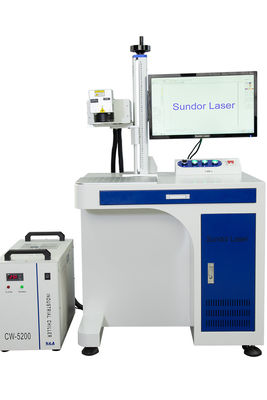

High Precision 5W UV Laser Marking Machine Cold Working For Glass Metal Plastic
UV Laser Marking Machine
| Laser Type | Diode |
| Modol | YLH-L |
| Certificatons | CE, ISO,OTHER |
| Power | 3w 5w 10w optional |
| Brand | SUNDOR |
| Country of Origin | CHINA |
| Work Precision | ±0.01mm |
| Support Format | PLT, DST, AI, DXF, BMP, JPG, CAD,CDR, DWG,PCX |
| Software | EZCAD |
| Cooling Way | AIR COOLING |
| NC | YES |
| Condition | NEW |
| Warranty | 12 Months |
| Work Area (mm) | 110x110/175x175(Customized) |
| Min Line Width | 0.017mm |
| Min Character | 0.15mmx0.15mm |
| Wavelength | 355nm |
| After-Service | Engineers available to service machinery overseas |
| Laser Repetition Frequency: | 20KHz-80KHz(adjustable) |
| Power Demand | AC220V/50HZ/2A |
| Optimum Working Temperature | 10-35 °C |
| Marking Depth | 0.01-1.0mm(subjejct to material) |
1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no consumables.
6. YLH-20L Desktop fiber laser marking machine is a standard type in the whole fiber laser marking machine series. Its classical design stands popular since laser marking machine’s birth.
1.Applicable Industries:
Precision instruments, computer keyboards, auto parts, plumbing parts, communications equipment, medical equipment , bathroom equipment, hardware tools, luggage decoration, electronic components, home appliances, watches, molds, gaskets and Seals, data matrix, jewelry, cell phone keyboard, buckle, kitchenware, knives, cooker, stainless steel products, aerospace equipment, integrated circuit chips, computer accessories, signs molds, elevator equipment, wire and cable , Industrial bearings, building materials, hotel kitchen, military, pipelines.
Tobacco industry, bio-pharmaceutical industry, liquor industry, food packaging, beverage, health care products, plastic buttons, bathing supplies, business cards, Clothing accessories, cosmetics packaging, car decoration, wood, logos, characters, serial number, bar code, PET, ABS, pipeline, advertising logo and other non-metallic industries.
2. Applicable Materials:
1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material
1.Standard wooden cases with sponge filled inside for packing protection
2. The Wooden case is fumigation free which is suitable by sea & by air.
3. Customized Packing as per Customer's requirement.
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.
Q2: When I got this machine, but I don’t know how to use it. What should I do?
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: If some problems happen to this machine, what should I do?
We provide two years machine warranty. During the two-year warranty, in case any problem for the machine, we will provide the parts free of charge (except for artificial damage). After the warranty, we still provide whole lifetime service. So any doubts, just let us know, we will give you solutions.
Q4: What’s consumables of laser marking machine?
A: It does not have consumable. It’s very economical and cost effective.
Q5: What’s package, will it protect the products?
A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
Q6: What’s delivery time?
A: Commonly, the lead time is within 5 working days after receiving the payment.
Q7: What payment terms can you accept?
A: Any payment is possible for us , like TT, LC, Western Union, Paypal, E-Checking, Master Card, Cash etc.
Q8: How is the shipping method?
A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
